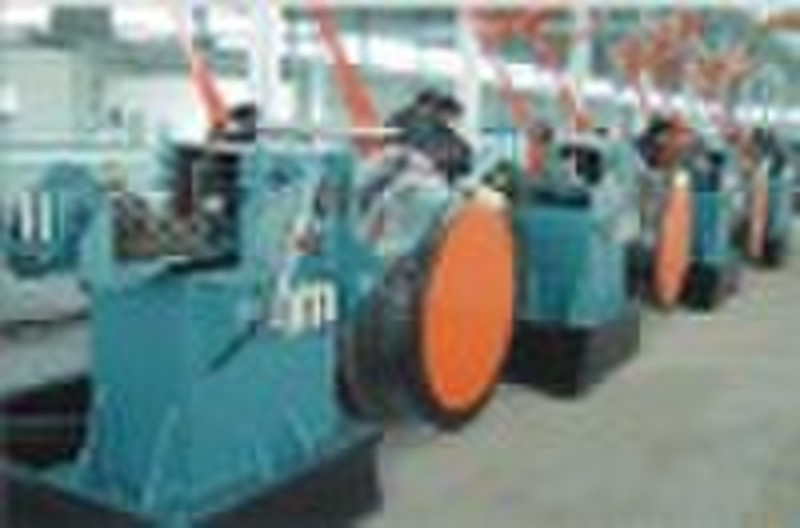

Heavy-duty Drawing Machine
original price: 50 000 USD
William Song
Contact person
Basic Information
| Place of Origin | Anhui China (Mainland) |
|---|---|
| Brand Name | Hengzheng |
Applications: The machine is used for drawing the copper alloy conduct wire which used in the electrified railway,drawing the 20 22mm rod to 10.8 14.4mm contact wire. Specifications: Type LFD-1200/1+1000/4 LFD-1000/4 Inlet wire dia. 20 22mm 20mm Outlet wire dia. 10.8 14.4m 10.8 14.4mm Section elongation 20 47% 20 47% Max.drawing speed 60m/min 60m/min Power of motor 75kw*1+55kw*4(DC) 75kw*1+55kw*3(DC) Transmission ratio of reducer 80 200 80 140 Pay-off bobbin size 2000 2000 Take-up bobbin size 2000 2000
Delivery terms and packaging
Packaging Detail: wooden box Delivery Detail: 60 days after receiving deposit
Port: Shanghai Port
