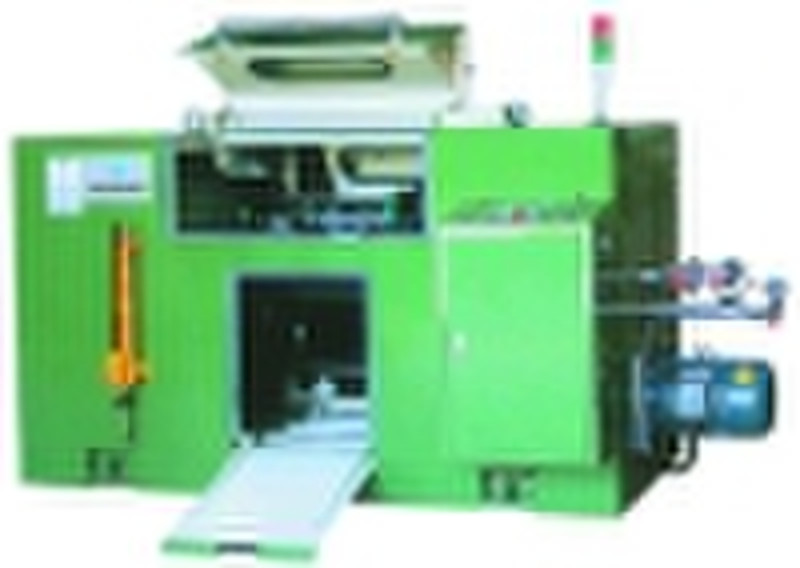

HSJ500A-1 Double Twist Bunching Machine
original price: 10 000 USD
William Song
Contact person
Basic Information
| Place of Origin | Anhui China (Mainland) |
|---|---|
| Brand Name | hengzheng |
| Model Number | HSJ500A-1 |
Model No.:HSJ500A-1 DoubleTwist Bunching MachineNo.Technical Parameter1Main UsageMulti-brasswire twisting2Surface of TwistingSection0.096-2.50mm23Distance of Single BrasswireΦ0.08-0.41mm4Twisting Distance4.2-39.6mm5Electrical Dynamo5.5kw Frequence inverter6Max.Convolution Speed of Main Axis3,000rpm7Take-upStructureChangeable style8Take-up SizeΦ500 x Length 314mm9Max. Take-up Capacity250kg10Up-down Structure of Take-up capstanManual-hydraulic pressure11Drop-out LinePolished Rod-bearing style12Numeration of Twisting Wire LengthDigital Display,Auto drop13Wire-off CheckingAuto stop at broken point14Height of Main Bobbin710mm15Equipment dimensionL2,560xW1,350xH1,400mm16Net Weight2,300kg
Delivery terms and packaging
Packaging Detail: Bare or wooden packing, which is suitable for ocean transportation. Delivery Detail: 30 days after receipt of deposit and confirmation
Port: Wuhu Port/Nanjing Port
