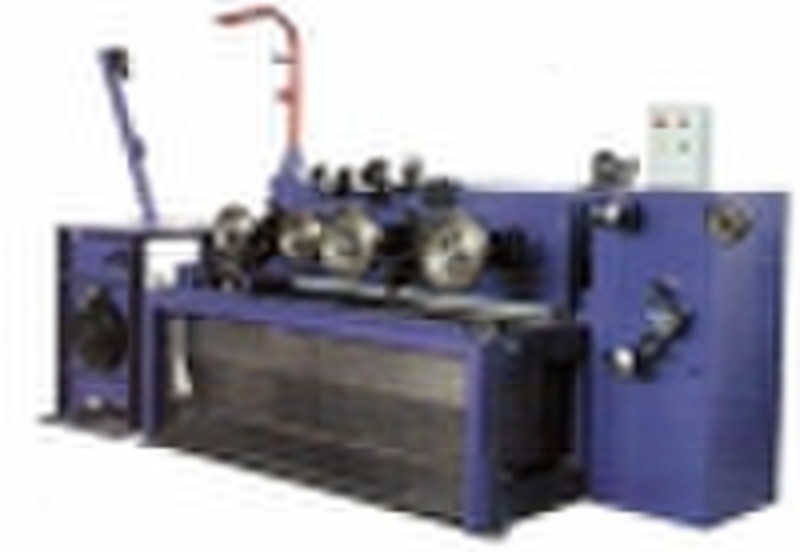

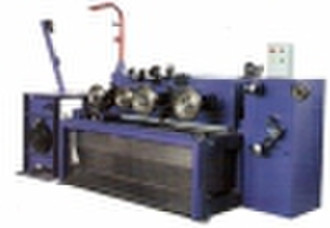

LT160-23-320B wire Drawing Machine
original price: 5 000 USD
William Song
Contact person
Basic Information
| Place of Origin | Anhui China (Mainland) |
|---|---|
| Brand Name | Hengzheng |
| Model Number | LT160-23-320B |
Model No.:LT160-23-320B Wet Wire Drawing MachineNo.Technical Parameter1Model TypeTurn over type water tank with 4 groups of step pulley(with truction cooling system)2Drawing MaterialHigh-carbon steel wire, Stainless steel wire3Drawing Times214Max. Speed20m/s5Input Wire Diameter0.8mm-1.9mm6Finished Wire Diameter0.15mm-0.30mm7Average Reduction Per Draft14.50%8Input Wire Tensible Strength1,350Mpa9Output Wire Tensible Strength3,200Mpa10Capstan Surface StatusSpray tungsten carbide11Capstan Surface HardnessHRC62-6412Lubrication Cooling TypeCirculation cooling13Driving Motor Power30KW14Mode of Adjusting SpeedAC Frequency conversion,stepless speed changing15Electrical Control TypePLC programme controlling, Multifunctional automatic protection16Turn Over TypeManual17Wire Arrangement TypePneumatic18Take-up Capstanφ305 spool19Take-up Motor Power5.5KW20Noise≤85dB21Volume of Cooling Tank750L22Unit Dimension1,950x1,600x1,910mm23Weight2,300kg
Delivery terms and packaging
Packaging Detail: Bare or wooden packaging;Equipment dimension L1.95 x W1.60 x H1.91m;Packaging L2.45 x W2.10 x H2.4m Delivery Detail: 30 days after receipt deposit and confirmation
Port: Main China Port
