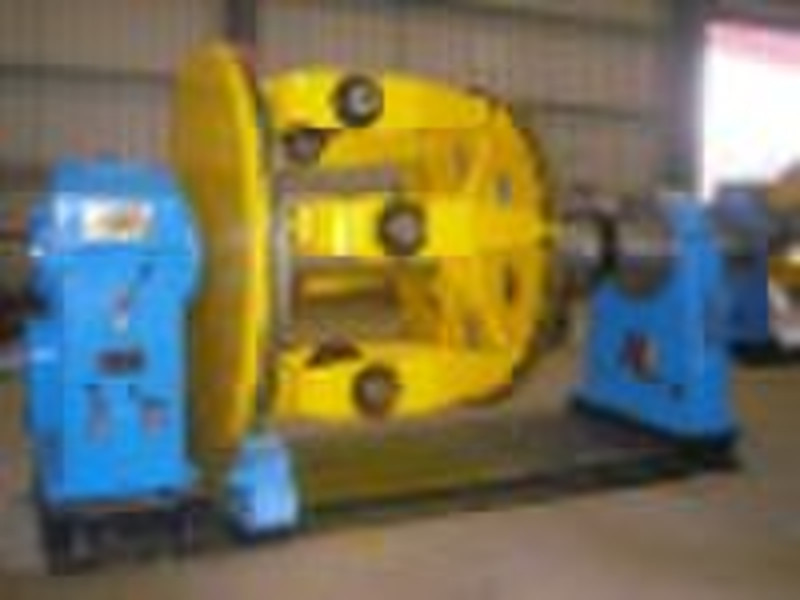

Planetary Stranding Machine

Application:The machine is used for stranding flexible aluminum wires or copper wires with back-twist,or compacting and stranding the round or sector conductors.It also can strand the insulated cores and make steel armoring for power cables. Main compositions:Pay-off,Nonmetal taping device(selectable), Mechanical transmission system(selectable), Wire guiding stand,Metal taping device(selectable),Electric control system,Stranding cage,Length counter,Safety protection system,Closing die holder,Dual wheel capstan,Compacting device(selectable) Take-up. Specifications Type JL-800 JL-630 JL-500 JL-400 Single wire dia. Copper 1.5 5mm 1.5 5mm 1.5 5mm 1.5 5mm Aluminum 1.8 5mm 1.8 5mm 1.8 5mm 1.8 5mm Steel 2 6mm 2 6mm 1.8 5mm 1.5 4mm Insulated cores 2 10mm 2 10mm 2 8mm 2 6mm Max.stranding speed of aluminum wires 6B 60rpm 105rpm 140rpm 160rpm 12B 50rpm 90rpm 120rpm 140rpm 18B 45rpm 80rpm 105rpm 125rpm 24B 40rpm 70rpm 90rpm 110rpm Max.producing line speed 40m/min 40m/min 50m/min 50m/min Max.stranding dia. 45mm 45mm 45mm 45mm Main Features: 100% back-twist stranding:Adopt fully gear back-twist,which can realize 100% back-twist stranding. High stranding speed:Adpot the newest frame structure stranding cage,a thick wall seamless steel tube main shaft,casting iron gearbox,transmission gear processed by grinding treatment,casting iron capstan,ground shaft and gearbox transmission instead of link or belt transmission.These designs highly increase the rigidness of stranding cage,the strength of transmission system,the cage rotating speed and the producing efficiency. Synchronous stranding function:According to different stranding requirements,the cages with different bobbins can combine freely.Every cage can set with synchronous pipe to stranding more wires,which realize the multifunction of one machine. Excellent performance of separate motor transmission:Adopt separate motor transmission instead of traditional gearbox and ground shaft transmission,which simplifies the complicated mechanical system and decrease the maintenance difficulty,the energy consumption and the noise in work site.The separate motor transmission makes the pitch continuously adjustable,which is good for improving the manufacturing technology.Adopt imported PLC to command and coordinate the whole line and imported touch-screen to display and set the online technical data.Adopts imported motor speed regulator which has reliable performance and high control accuracy. Accurate synchronization of ground shaft transmission:Once the gear ratio of gearbox is set,the strict proportional relation between cage roatating speed and the haul-off speed is fixed and the stranding pitch would never change in the course of starting,running and stop of machine,which ensure the accurate synchronization of every cage and easy-operated electric control system. Strander; Stranding machine cable machine
