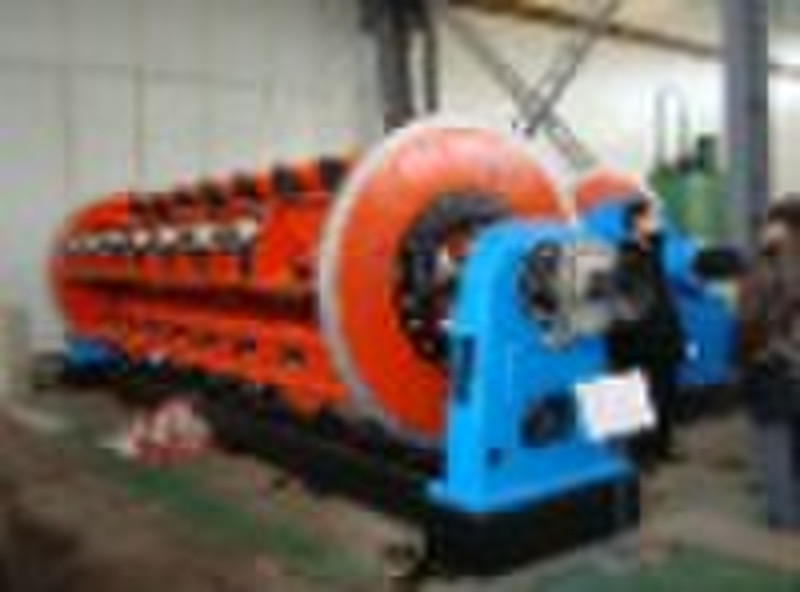

Rigid Frame Stranding Machine
original price: 10 000 USD
William Song
Contact person
Basic Information
| Place of Origin | Anhui China (Mainland) |
|---|---|
| Brand Name | Hengzheng |
| Model Number | JLK-400 |
Applications: The machine is used for stranding copper or aluminum wire,round or sector compact conductors.It also can be used for pre-twisting,compacting and stranding of sector conductors. Specifications: Type JLK-710 JLK-630 JLK-500 JLK-400 Single wire dia. Copper 1.5 5MM 1.5 5MM 1.5 5MM 1.5 5MM Aluminum 1.8 5MM 1.8 5MM 1.8 5MM 1.8 5MM Max.stranding speed of aluminum wires 6B 120rpm 175rpm 215rpm 230rpm 12B 120rpm 175rpm 215rpm 230rpm 18B 105rpm 150rpm 190rpm 200rpm 24B 90rpm 130rpm 165rpm 1750rpm 30B 80rpm 115rpm 145rpm 155rpm Max.producing speed 60m/min 60m/min 60m/min 60m/min Max stranding dia. 55MM 55MM 55MM 55MM Stranding machine Strander
Delivery terms and packaging
Packaging Detail: wooden box Delivery Detail: 60 days after receiving deposit
Port: Shanghai
