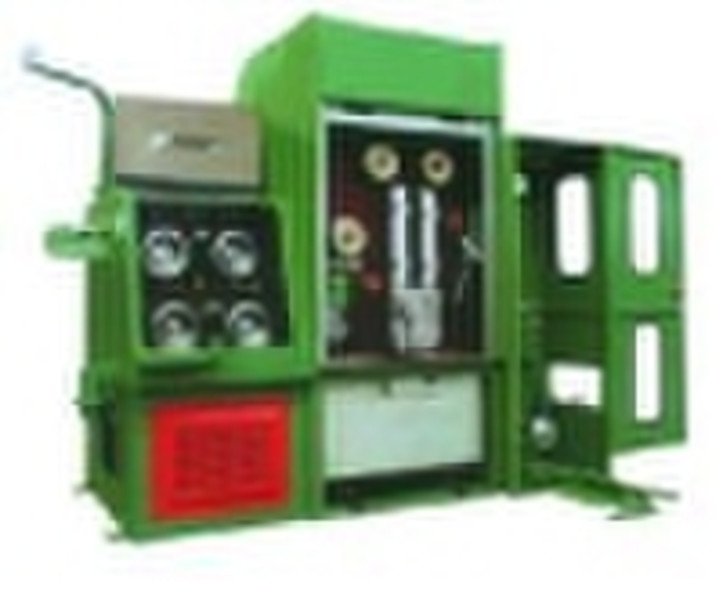

SNF-24DN Copper Wire Drawing Machine with Continuo
original price: 20 000 USD
William Song
Contact person
Basic Information
| Place of Origin | Anhui China (Mainland) |
|---|---|
| Brand Name | Hengzheng |
| Model Number | SNF-24DN |
Model No.:SNF-24DNCopper Wire Drawing Machine with Continuous AnnealingNo.Technical Parameter1Control SystemComputer Digital Control or LCD Control2Inverter ControlDual Inverter Control3Wire Finished Dia.Φ0.07-0.25mm4Wire Inlet Dia.Φ0.50-1.00mm5Max. DrawingSpeed2000m/min6Max. Drawing Dies24pcs7Mechanical DraftRatio13%8Speed CapstanDraft Ratio8%9Final Draft Ratio0%-2%10CabinetIroned cast11CapstanCeramic plasma capstan12Max. Capstan Dia.Φ242.5mm13Speed Capstan Dia.Φ199mm14Bobbin Size380mm15Bobbin Loading&Unloading TypeShaft Type16Tranversing Unit110W Synchronize Motor Type17Main Motor11kw(15HP)18Spooler Motor3.7kw(5HP)19Transmission TypeFlat belt20CorrectionSystemSynchronous control spooler21Detecting DeviceWeight balance by swing arm22Tension ControlWeight balance type23Lubrication TypeSpray type24Brake TypeMagnetic Brake25Bearing Lubrication TypeWithout oil26Max.Loading Capacity50kg27Annealing Output Current9KVA28Anneling Control4 Pole DC Current Output29Power Source380V 50/60Hz30Lubrication Capacity40 Liter/Min31Equipment DimensionL4,000xW1,550xH1,900mm32Machine Weight3,500kg 1. Intermediate copper wire drawing machine 2.Copper wire drawing machine 3.Cable machinery 4.Cable production line 5.Cable manufacturing equipment 6.Fully automatic control 7.Dual inverter control
Delivery terms and packaging
Packaging Detail: Bare or wooden packing, which is suitable for ocean transportation. Delivery Detail: 30 days after receipt of deposit and confirmation
Port: Main China Port
