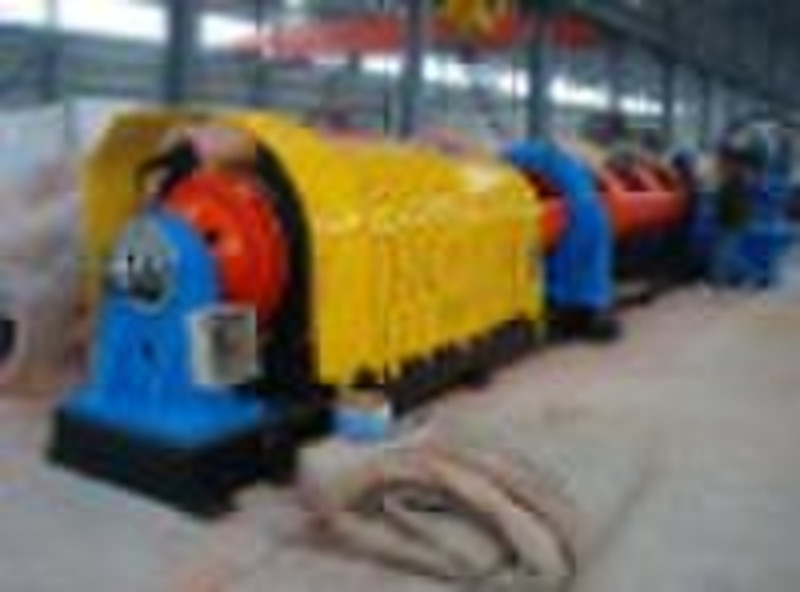

Tubular Stranding Machine
original price: 10 000 USD
William Song
Contact person
Basic Information
| Place of Origin | Anhui China (Mainland) |
|---|---|
| Brand Name | Hengzheng |
| Model Number | JLG-200 |
Application The machine is used for stranding steel wires,aluminum wires and copper wires with back-twist or compacting.It also can strand insulated cores. Specifications Type JLG-710 JLG-630 JLG-500 JLG-400 JLG-315 JLG-200 Single wire dia. Copper 1.5 6mm 1.5 6mm 1.5 6mm 1.3 6mm 0.3 6mm 0.2 6mm Alu 1.8 6mm 1.8 6mm 1.8 6mm 1.8 6mm 0.3 6mm 0.2 6mm Steel 1.5 6mm 1.5 6mm 1.5 6mm 1.3 6mm 0.3 6mm 0.2 6mm Max.rotating speed of cage 6B 350rpm 500rpm 750rpm 1000rpm 1200rpm 1500rpm 12B 280rpm 400rpm 600rpm 800rpm 960rpm 1200rpm 18B 220rpm 320rpm 480rpm 640rpm 750rpm 960rpm Max producing line speed 6B 90m/min 130m/min 165m/min 200m/min 240m/min 280m/min 12B 70m/min 100m/min 130m/min 160m/min 190m/min 220m/min 18B 55m/min 80m/min 100m/min 130m/min 150m/min 175m/min Max.stranding dia. 6B 18mm 15mm 15mm 12mm 3mm 2.5mm 12B 30mm 25mm 25mm 20mm 5mm 3.5mm 18B 45mm 35mm 35mm 30mm 7mm 6mm Stranding machine; Wire machine; Strander
Delivery terms and packaging
Packaging Detail: wooden box Delivery Detail: 60 days after receiving deposit
Port: Shanghai Port/Nanjing Port
Payment term
Telegraphic transfer
-
Payment Methods
We accept:
