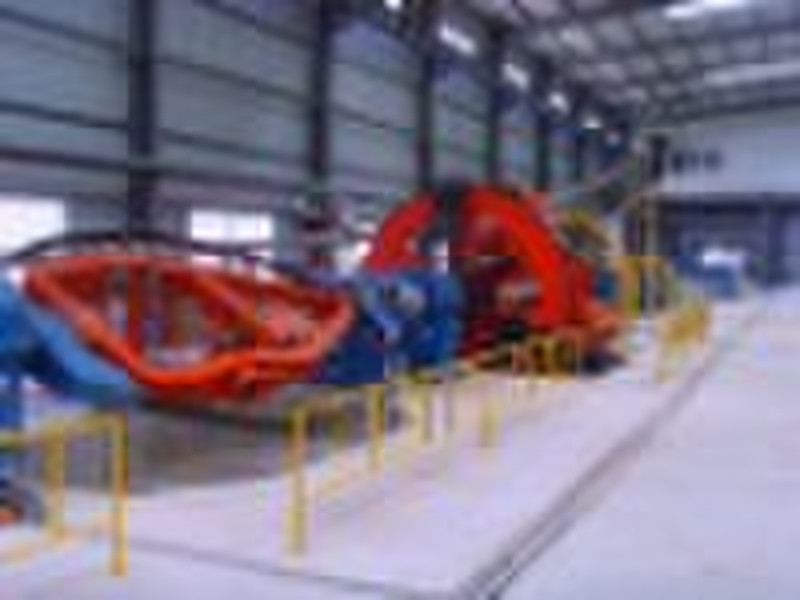

Vertical Laying-up Machine

Drum Twist Laying-up Machine Application: The machine is used for laying-up the great section and great length power cables or communication cables.It can be used for stranding the high-voltage and extra-high voltage Milliken conductors.The machine also can make steel wire or tape armoring and copper wire or tape screening. Specifications Type JPD-4200 JPD-4000 JPD-3500 JPD-3150 JPD-2500 JPD-2000 JPD-1600 Max.laying-up dia. 150mm 150mm 130mm 130mm 120mm 100mm 60mm Max.rotating speed of cage 25rpm 25rpm 30rpm 30rpm 40rpm 50rpm 80rpm Max.haul-off line speed 40m/min 40m/min 40m/min 50m/min 50m/min 50m/min 60m/min Central pay-off bobbin size PN4200 PN4000 PN3500 PN3150 PN2500 PN2000 ------ Pay-off bobbin size PN2500 PN2500 PN2500 PN2000 PN1600 PN1250 PN500 Take-up bobbin size PN4200 PN4000 PN3500 PN3150 PN2500 PN2000 PN1600 Steel wire pay-off bobbin size PND630 PND630 PND630 PND630 PND500 PND500 -------- Max.haul-off 6000KG 6000KG 6000KG 5000KG 3000KG 3000KG ------- Planetary Laying-up Machine Application: The machine is used for stranding middle-low voltage power cable,communicate cable,control cable and mining cable.The section of stranded cores can be round or sector. Specifications: Type JC-2000/1+1+3 JC-1600/1+1+3 JC-1250/1+1+3 JC-1250/1+6 JC-1000/1+6 Single wire dia. 10 35mm 10 35mm 6 25mm 6 25mm 5 20mm Max.laying dia. 80mm 80mm 75mm 75mm 60mm Max.rotating speed of cage 10rpm 15rpm 30rpm 25rpm 40rpm Max.haul-off line speed 30m/min 30m/min 40m/min 40m/min 40m/min Pay-off bobbin size PN2000 PN1600 PN1250 PN1250 PN1000 Take-up bobbin size PN3150 PN3150 PN2500 PN2500 PN2000 Capstan dia. 2500mm 2500mm 2000mm 2000mm 1600mm Main motor 55kw(AC) 45kw(AC) 37kw(AC) 37kw(AC) 30kw(AC) Skip Type Laying-up Machine Applications: The machine is used for laying-up various flexible round conductors with back-twist. Specifications: Type JCG-1250/1+6 JCG-1000/1+6 JCG-800/1+6 Single wire dia. 5 20mm 5 15mm 5 15mm Max.laying dia. 60mm 45mm 45mm Max.rotating speed of cage 250rpm 300rpm 350rpm Max.haul-off line speed 120m/min 140m/min 160m/min Pay-off bobbin size PN1250 PN1000 PN800 Take-up bobbin size PN2500 PN2000 PN1600 Capstan dia. 1600mm 1600mm 1500mm Main motor 55kw(AC) 45kw(AC) 37kw(AC)
