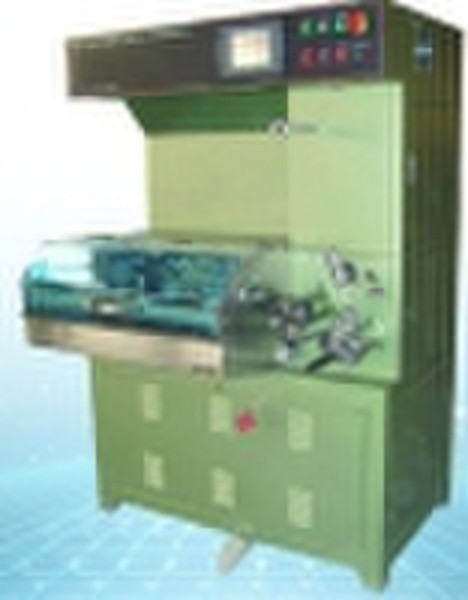

WLJ14-30II Fine Wire Drawing Machine
original price: 5 000 USD
William Song
Contact person
Basic Information
Model No.:WLJ14-30II FineWireDrawing MachineNo.Technical Parameter1Finished Wire Diameter0.05-0.03mm2Max. Inlet Wire Diameter0.08mm3Max. Drawing Loops164Reduction Per Draft8%, Last 7%5Drawing CapstanCeramic spraying6Max. Drawing Capstan Diameter115mm7Drawing Power1.5KW8Line Arrangement MethodStepper Motor,Rolled Screw Driving9Electrical Control TypePLC programme control,Photoelectric checking,Chromatic touch screen10Inverter ControlInverter controlling11Traversing typeSpooler moving12Rated Voltage380V/50-60Hz13Equipment dimensionL1.2 x W1.0 x H1.6mFeatures:1Fully automatic,constant tension,low noise,high efficiency2Special straighting for finished wires, reduce rolled, useful for annealing3Spooler moving guarantee capstans be good quality 1.Stainless steel wire drawing machine 2.Fine steel wire drawing machine
Delivery terms and packaging
Packaging Detail: Bare or wooden packaging;Equipment dimension L1.2 x W1.0 x H1.6m;Packaging L1.7 x W1.5 x H2.0m Delivery Detail: 30 days after receipt deposit and confirmation
Port: Main Chinese Port
