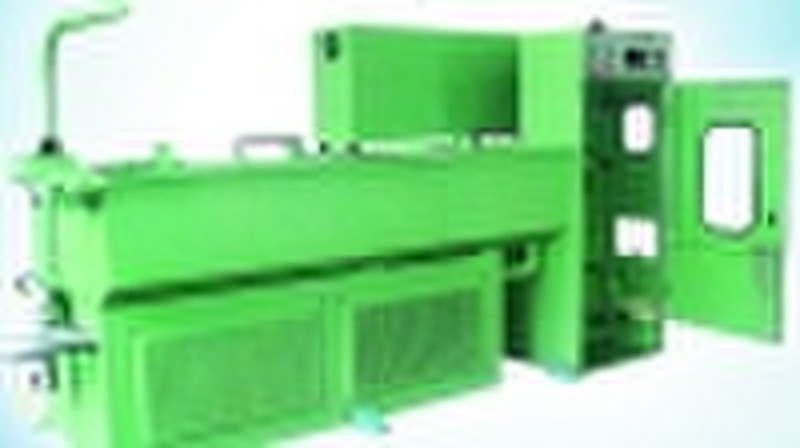

XLJS24-70 Wire Drawing Machine
original price: 8 000 USD
William Song
Contact person
Basic Information
| Place of Origin | Anhui China (Mainland) |
|---|---|
| Brand Name | HENGZHENG |
| Model Number | XLJS24-70 |
Model No.:XLJS24-70 Wire Drawing MachineNo.Technical Parameter1Machine TypeXLJS24-702Finished Wire0.12-0.60mm3Max.Wire inlet2.05mm4Drawing Dies245Draft Ratio15%, 6%6Max.Capstar Dia260mm7Max.Drawing Speed20m/s8Drawing Power11-15kw9Take-up Power4-5.5kw10Control SystemPLC, Photoelectric Detection,Color Touchable Screen11Power ControlDouble Conversion12Tension ControlBalanced Lever Weight Type13Traversing ModeBelt Type Synchronous Motor14Brake modeMagnetic Brake15LubricationSector Sprayed-type16Rated Voltage380V 50/60HZ17DimensionL2.05*W1.6*H1.9m18Weight3,200kgFeatures1Two motors type can precisely control the spool wire tension to reduce the slip ratio of wire to a minimum manner2Transmission by timing belts
Delivery terms and packaging
Packaging Detail: Bare or wooden packaging;Equipment dimension L2.05xW1.6xH1.9m;Packaging L2.55 x W2.0 x H2.5m Delivery Detail: 30 days after receipt of deposit and confirmation
Port: Main China Port
Payment term
Telegraphic transfer
-
Payment Methods
We accept:
